Mid-Century Play Set

A mid-century play set can bring swings, a slide, and a small playhouse together in a design that complements a home and yard. This project pairs a natural wood finish with bright yellow and white accents, and includes a materials list, tools, and a step-by-step construction outline. The design was created by Elsie and built by Collin.

Table of Contents

Planning the mid-century play set

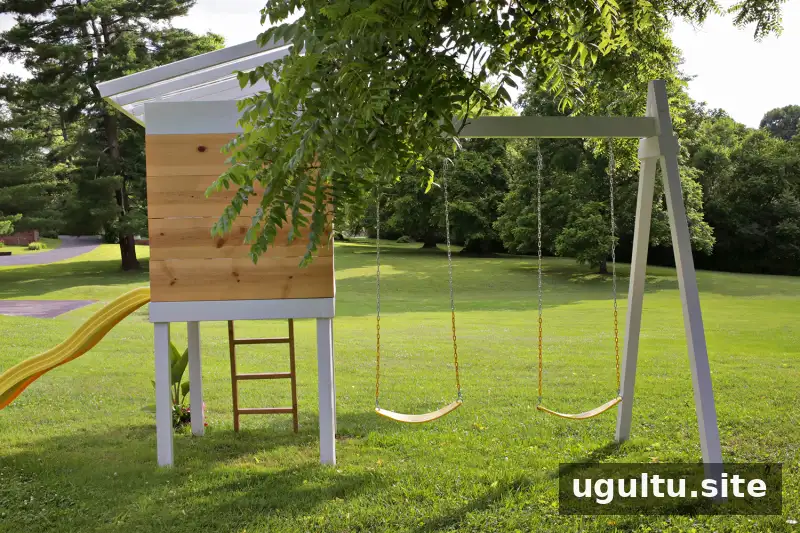

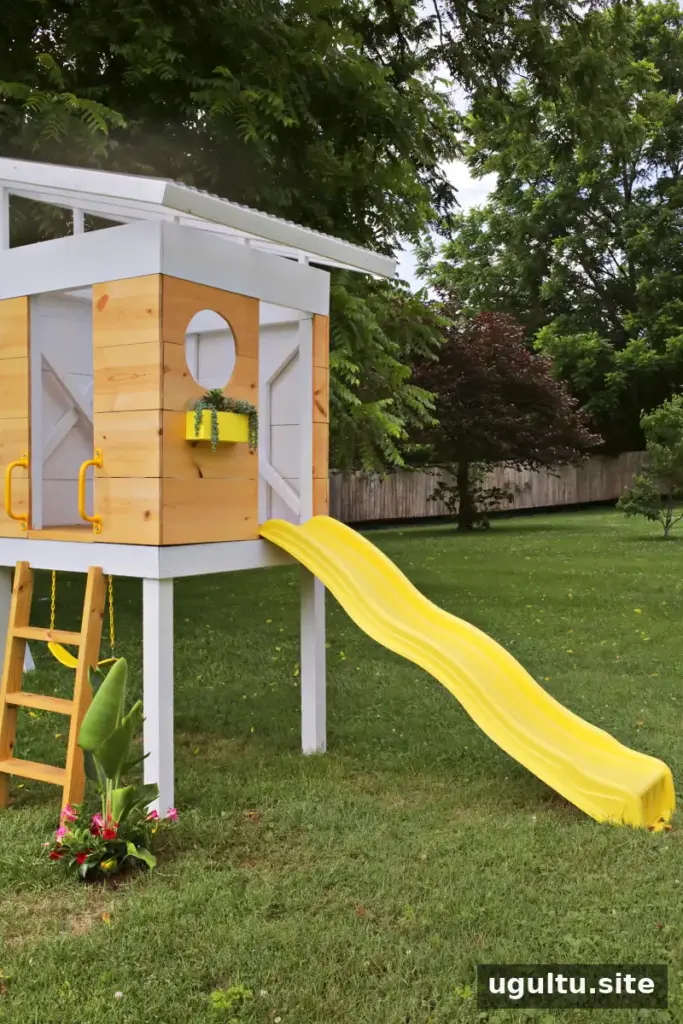

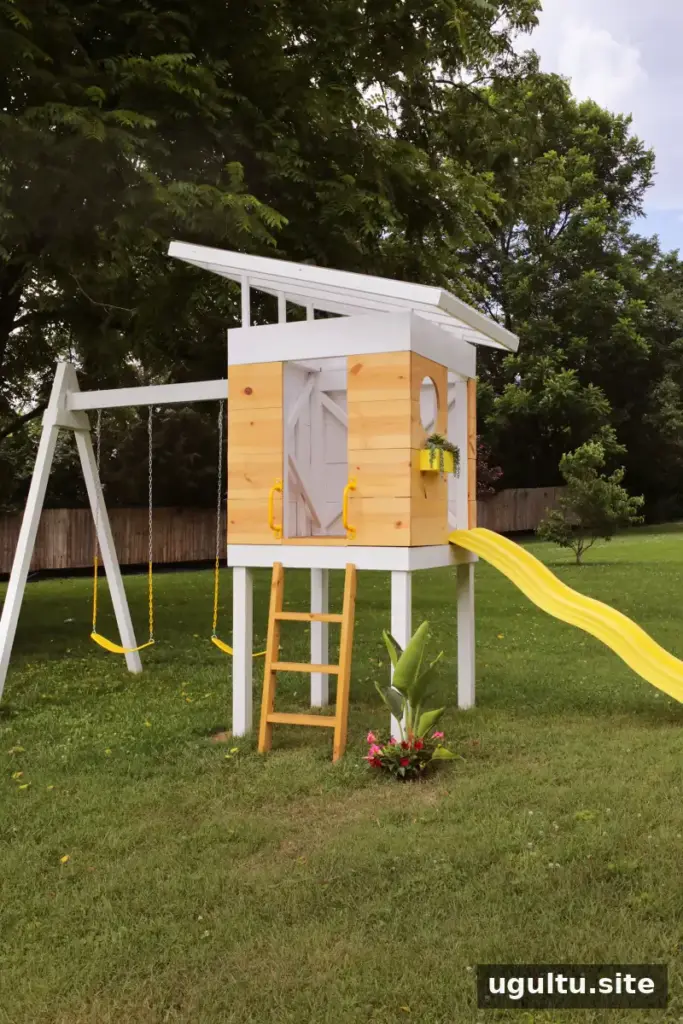

The design combines an elevated playhouse with a swing beam, slide, ladder, and a simple roof. The slide and swings are yellow, while much of the wood remains a light, natural color. A circular window and a small flower box add decorative details.

Before choosing a location, consider visibility from the house, access to the play area, and enough clear space around the swings and slide. Check local requirements and the equipment manufacturers’ instructions for spacing, anchoring, fall zones, and installation. Have the structure reviewed by a qualified professional if you are unsure whether its framing is suitable for your site and intended use.

The playhouse was planned to add more active features than a basic A-frame shelter. Its layout can be adjusted to suit the yard, but changes to post spacing, beam height, or framing can affect stability. Measure the site carefully before buying or cutting lumber.

Yellow accents tie together the slide and swings, while a clear wood protector helps retain the natural appearance of the lumber. Use only finishes suitable for exterior wood, and follow their labels for surface preparation, application, drying time, and re-coating.

The location was chosen to keep the play structure from blocking the view from the sunroom and to leave room for a possible future deck. When planning your own layout, also check for overhead obstructions, underground utilities, drainage, and a level installation area.

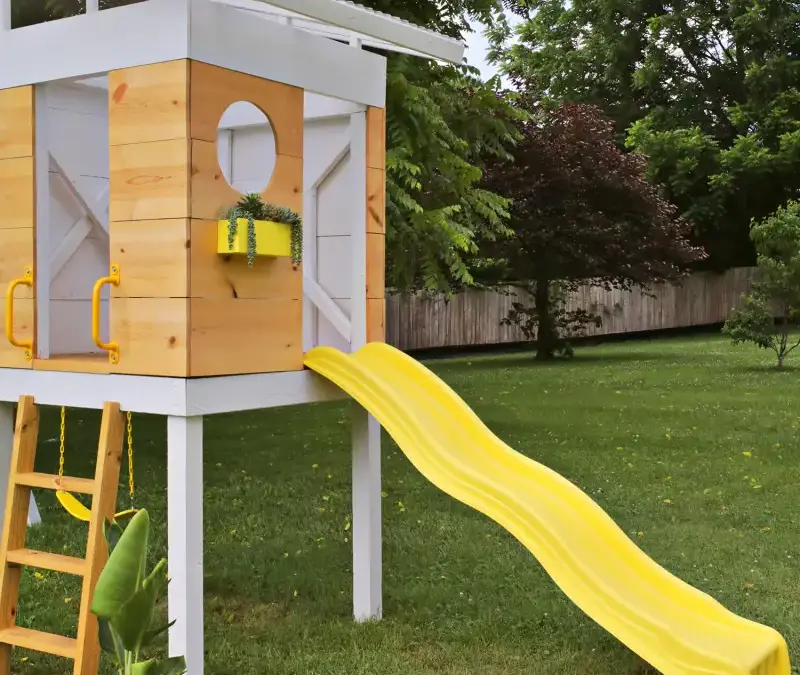

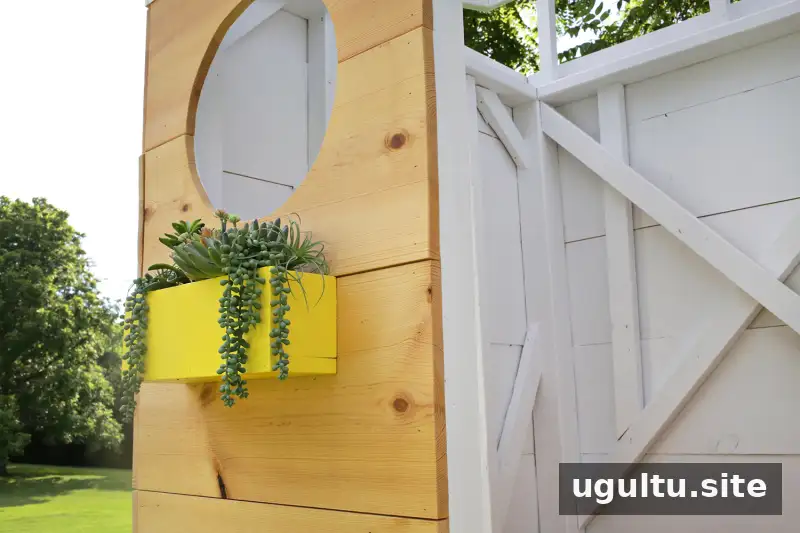

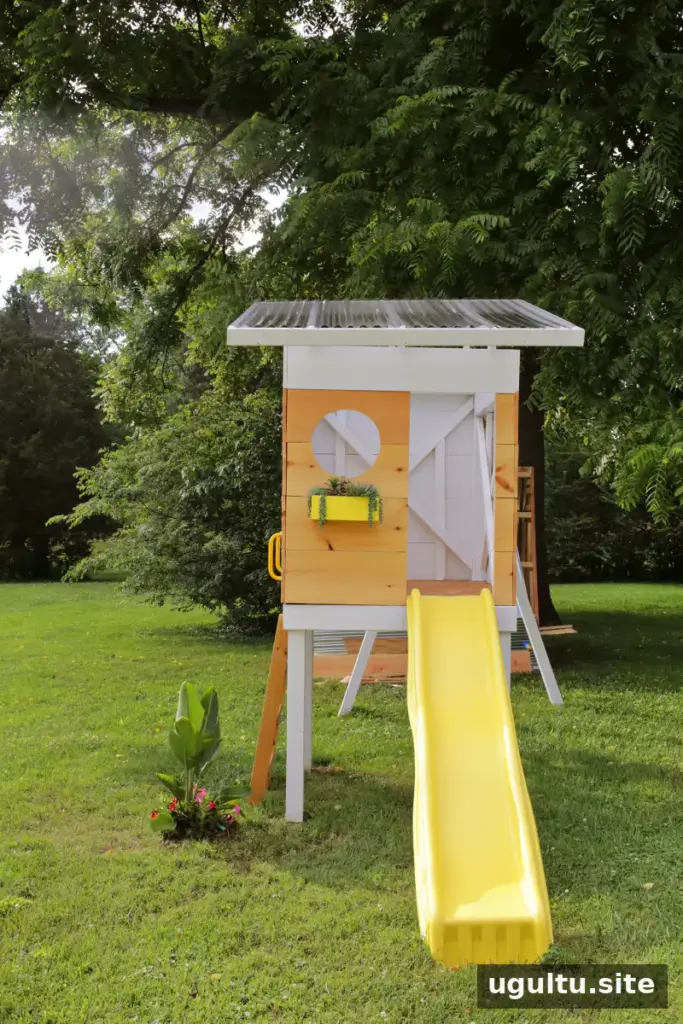

A small flower box below the circular window adds a colorful finishing touch. Keep decorative features securely attached and avoid placing sharp edges or protruding hardware where children can reach them.

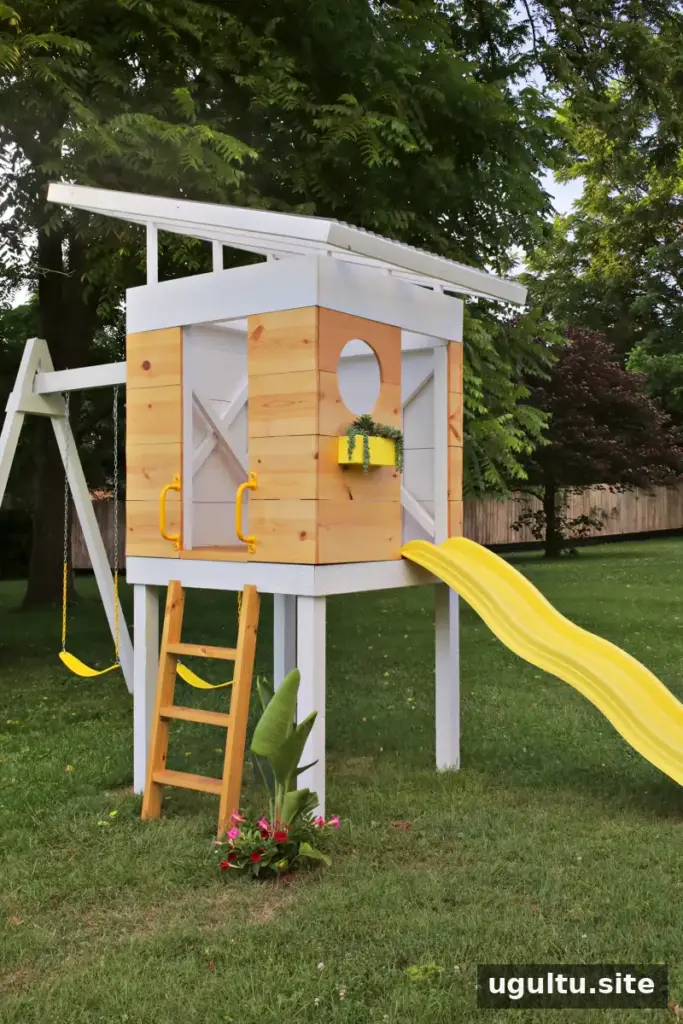

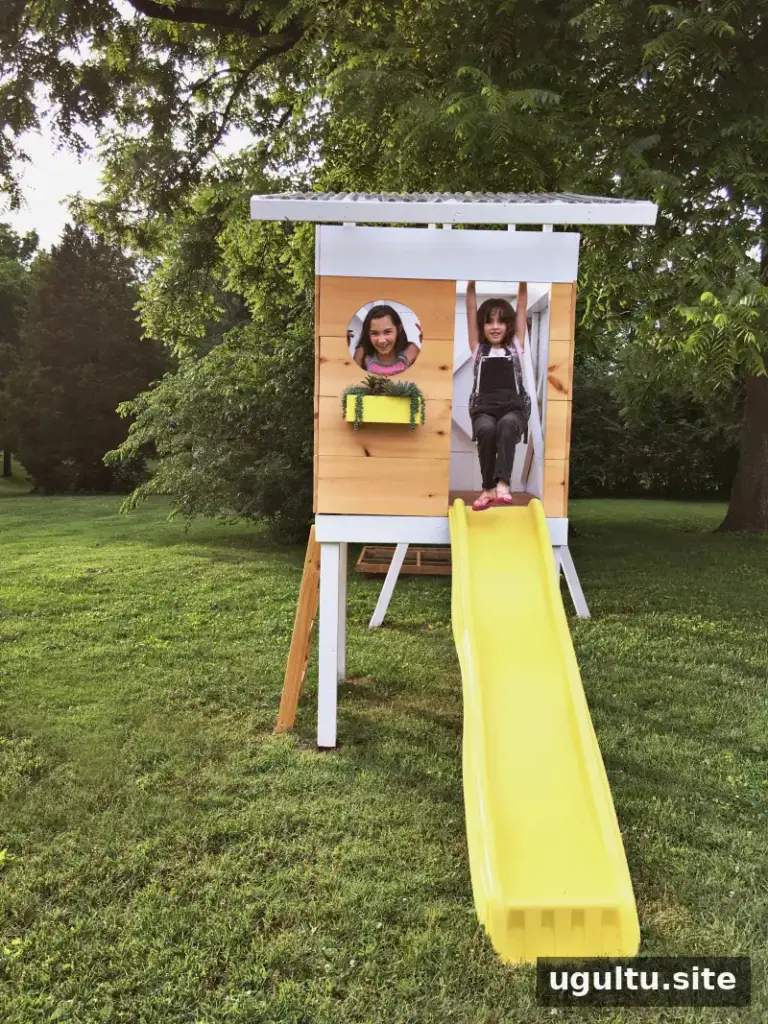

The completed play set has been used by visiting children and adults. Inspect the structure regularly, especially after heavy weather, and tighten or replace any loose, damaged, or worn components.

Materials and estimated cost

The listed material total is $791.84. Prices are the amounts given for this project and may vary by location and over time.

Four 4″ x 4″ x 6′ pressure-treated posts ($26.48)
Two 4″ x 4″ x 10′ pressure-treated posts ($24.84)
Two 4″ x 4″ x 8′ posts ($23.96)
One 4″ x 6″ x 12′ pressure-treated board ($23.27)
Six 50-lb bags of fast-setting concrete ($32.76)
One piece of 3/4″ x 4′ x 8′ pressure-treated plywood ($33.79)
Two 3/4″ x 6″ x 8′ pressure-treated boards ($12.16)
Ten 2″ x 3″ x 8′ boards, also called stud boards ($21.05)
Ten 2″ x 4″ x 8′ boards ($33.04)
Three 2″ x 2″ x 3′ boards ($18.66)
Eight 1″ x 12″ x 8′ boards ($117.72)
Three clear 26″ x 8′ corrugated polycarbonate roof panels ($62.91)
Four 5/8″ x 8″ lag bolts and washers ($13.96)
Four 10″ eye bolts ($27.88)
Eight 3″ L braces ($31.84)
One 2-lb box of 2 1/5″ self-drilling star-head screws ($9.37)
Two swings ($75.16)
One slide ($102.16)
One gallon of clear wood protector ($31.99)
One gallon of semi-gloss exterior paint in white ($36.99)
One quart of semi-gloss exterior paint in yellow ($17.99)
Two yellow handles ($14.95)
Yard flags, optional

Tools

Post hole diggers
Drill and 1/2″ x 16″ drill bit
Compound miter saw
4′ level and tape measure
Ratchet with 1/2″ socket for the 5/8″ lag bolts
Two 8′ ladders; one is optional
Nail gun and jigsaw
Sandpaper, optional, and two paint brushes

How to build the playhouse base and swing frame

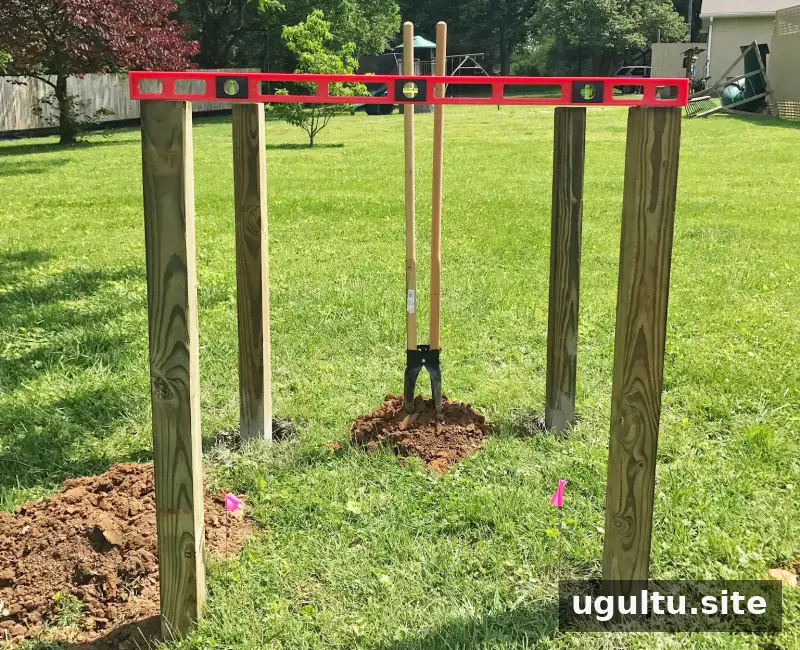

Mark a 4′ x 4′ square in the chosen location. Dig a hole about 2′ deep at each corner. Set a 4″ x 4″ x 6′ pressure-treated post in each hole, leaving 4′ from the top of the post to the top of the hole. Check that all posts are plumb and equally spaced.
Add about half a bag of fast-setting concrete around each post, then add water and mix as directed by the concrete manufacturer. Keep checking the posts with a level while the concrete sets. Follow the product label for setting time before loading the posts.

Have the 3/4″ x 4′ x 8′ pressure-treated plywood cut into two 4′ x 4′ pieces. Lay the pieces over the four posts, align them, and fasten them securely. The project instructions suggest four screws per post.

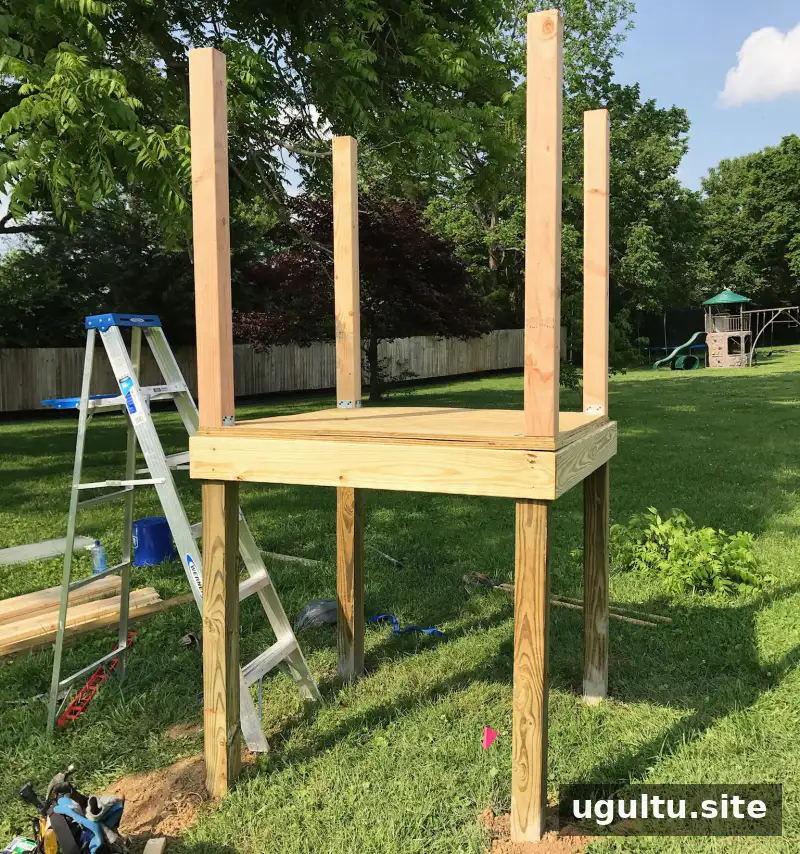

Cut the two 3/4″ x 6″ x 8′ boards into 4′ sections with 45° ends for trim and added stability. Cut one 4″ x 4″ x 8′ post into two 4′ pieces and the other into two 3′6″ pieces. Attach the shorter pieces at the back and the 4′ pieces at the front using L braces.

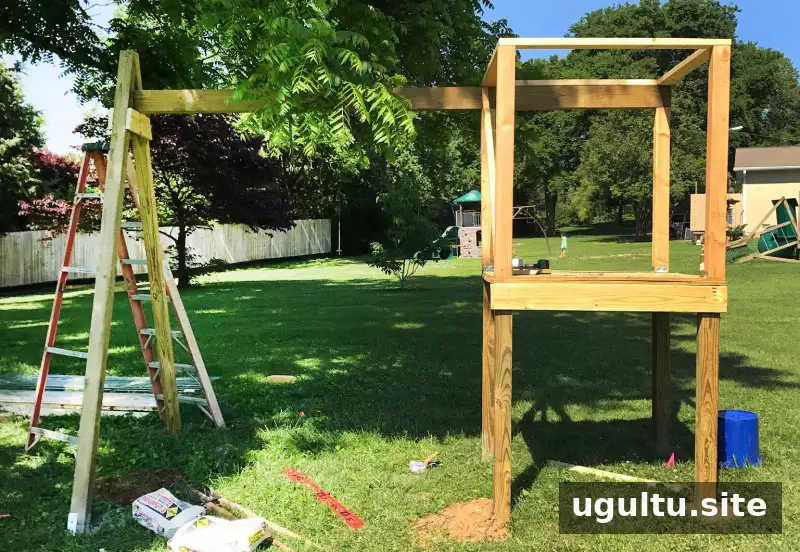

Use extreme caution when lifting the heavy beam. Work with helpers, secure the lumber against movement, and do not rely on a ladder as a permanent support. Place the 4″ x 6″ x 12′ board across the rear supports and temporarily brace it while preparing the A-frame.

Build the A-frame from the two 4″ x 4″ x 10′ posts, cutting the top ends to the angles required for the site. Position it to support the beam, mark the post locations, and adjust the spacing to fit the actual dimensions and ground conditions. Set the A-frame posts in concrete, check the assembly for level and plumb, and allow the concrete to set according to its label.

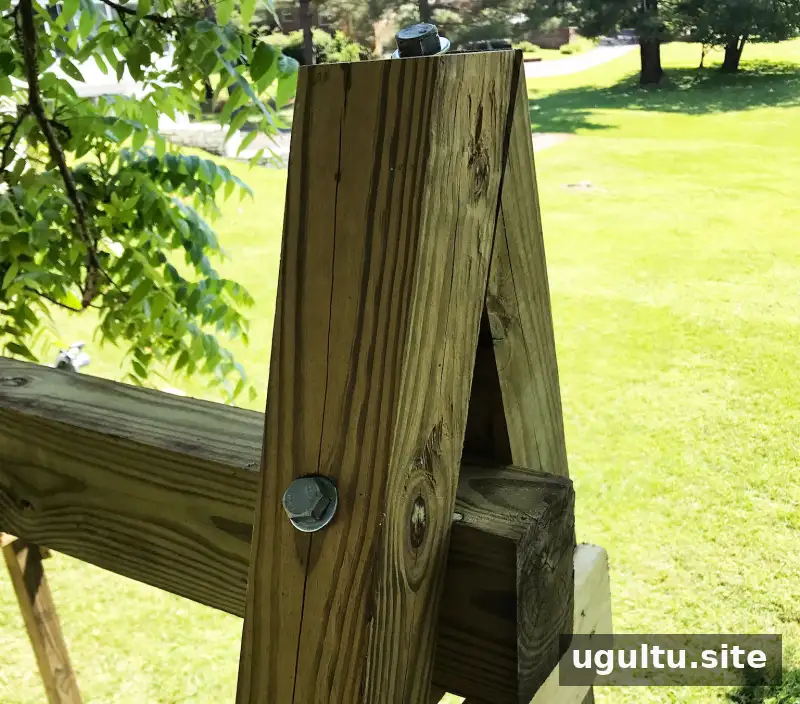

Pre-drill for the lag bolts with the 1/2″ drill bit and tighten them with the ratchet. Secure the beam to the supports and remove temporary braces only after the permanent connections are in place. Add diagonal 2″ x 4″ boards with 45° ends across the top of the four playhouse posts as shown in the project images.

Frame the walls, roof, and play features

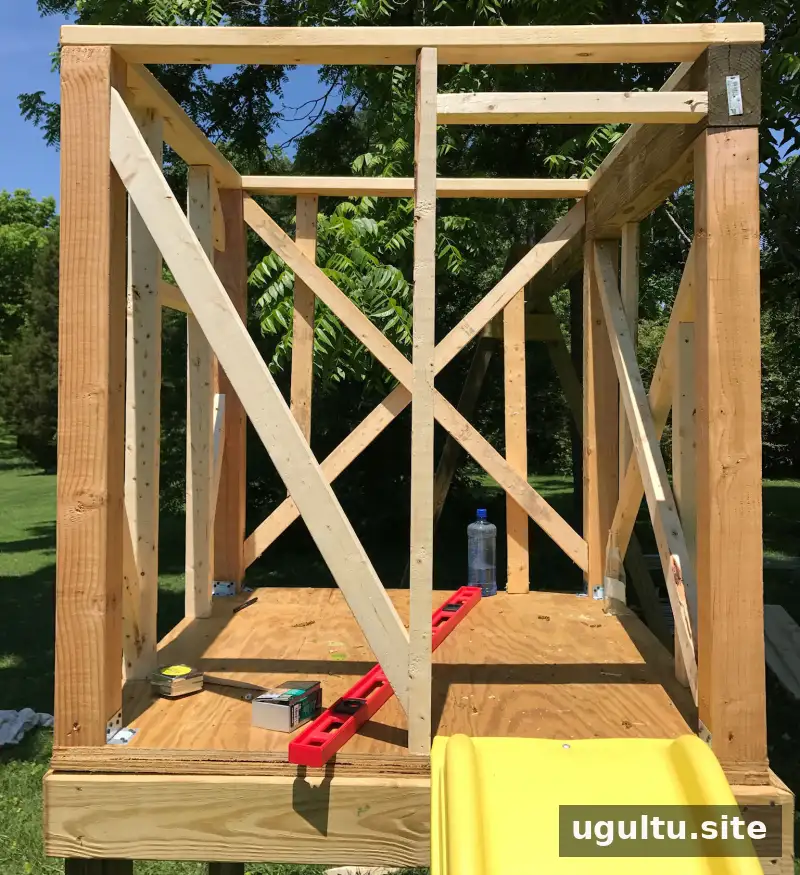

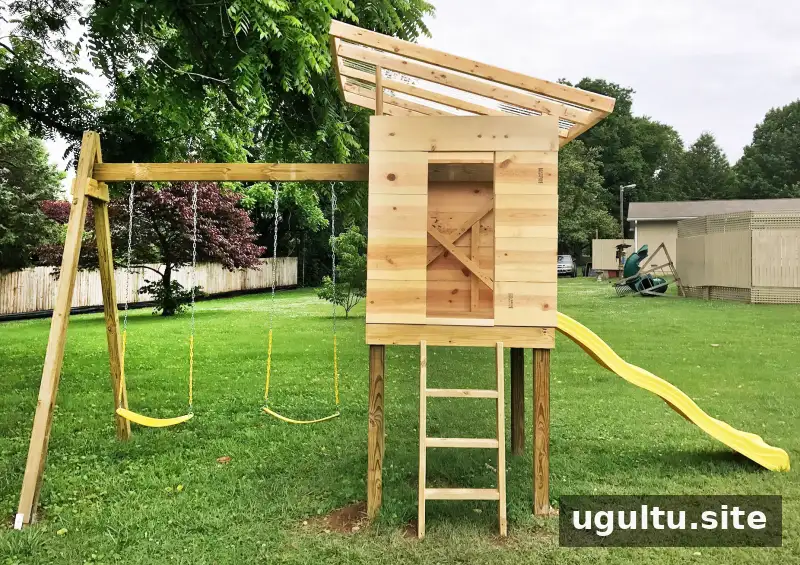

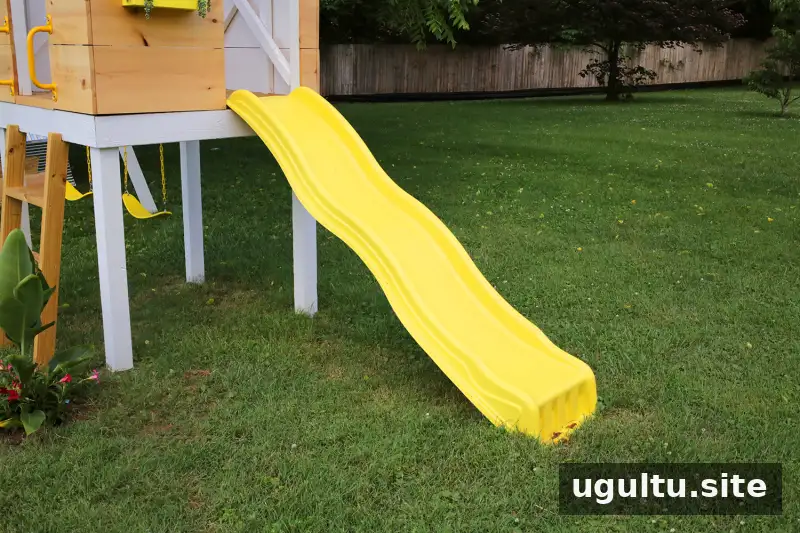

Attach the slide on the selected side, then frame the entrance and slide exit to suit the layout. Add X-shaped bracing to the other two walls using 2″ x 3″ boards. Measure openings and check the frame for movement before adding the wall boards.

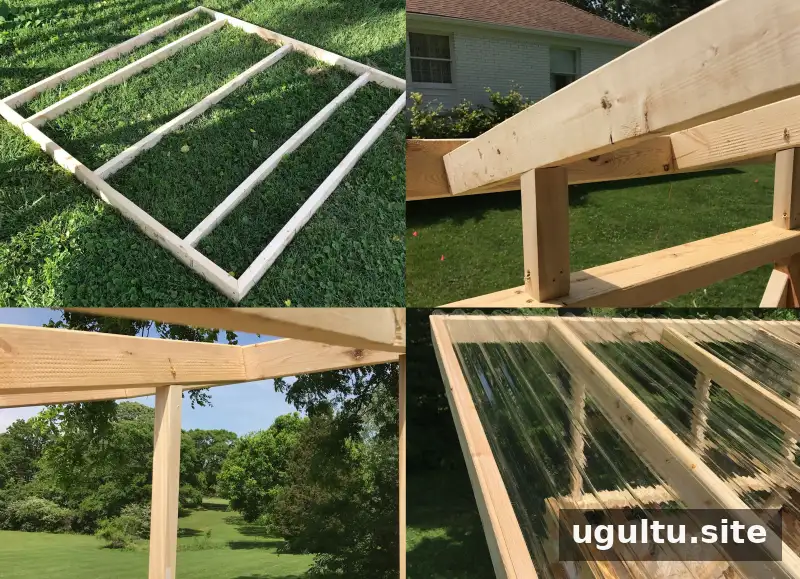

For the roof base, assemble four 2″ x 4″ x 8′ boards into a 6′ x 6′ square using 45° cuts. Add three crosspieces spaced evenly inside the frame. Cut the 2″ x 2″ x 3′ boards into the specified support pieces: three 2′ sections and three 6″ sections, with a 15° angle on one side of each. Fasten the six supports to the top of the playhouse, position the roof frame, and check that it is level before securing it.

Place the three 26″ x 8′ corrugated polycarbonate panels evenly across the roof and fasten them according to their installation instructions. Trim excess material only with a suitable tool and while following the panel manufacturer’s safety guidance. If painting the roof frame, finish it before installing the panels to avoid removing them later.

Measure and mark the swing positions, then pre-drill holes for the eye bolts. Install the bolts and attach the swings according to their manufacturers’ instructions. Build the ladder from 2″ x 4″ boards cut to the desired dimensions, and make sure the ladder is firmly secured.

Cut the 1″ x 12″ x 8′ boards to fit the walls, accounting for the framed openings. Nail the boards in place from the bottom upward. To make the circular window, trace a circle, drill a pilot hole along the outline, and cut it with a jigsaw. Sand exposed edges lightly to reduce splinters.

Finish and inspect the mid-century play set

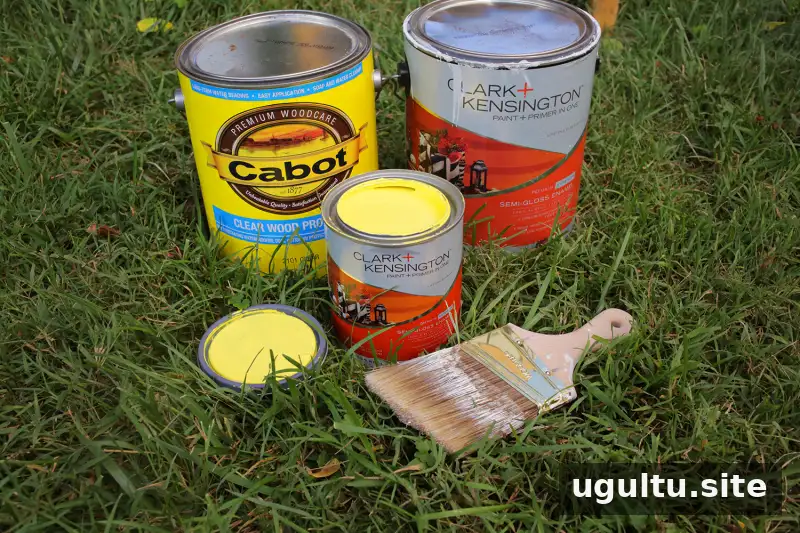

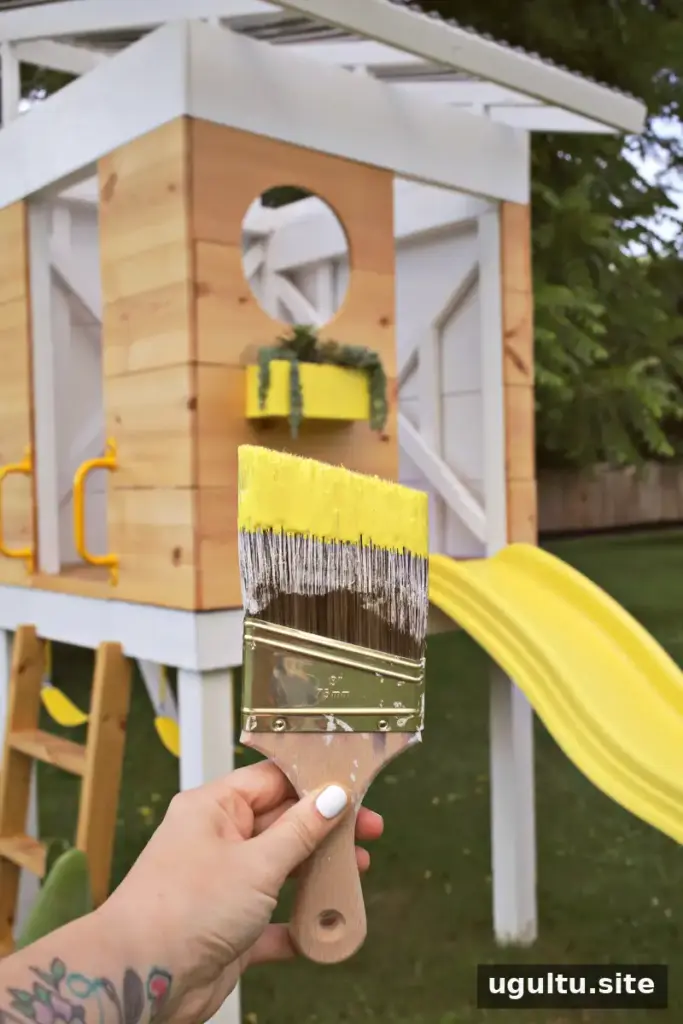

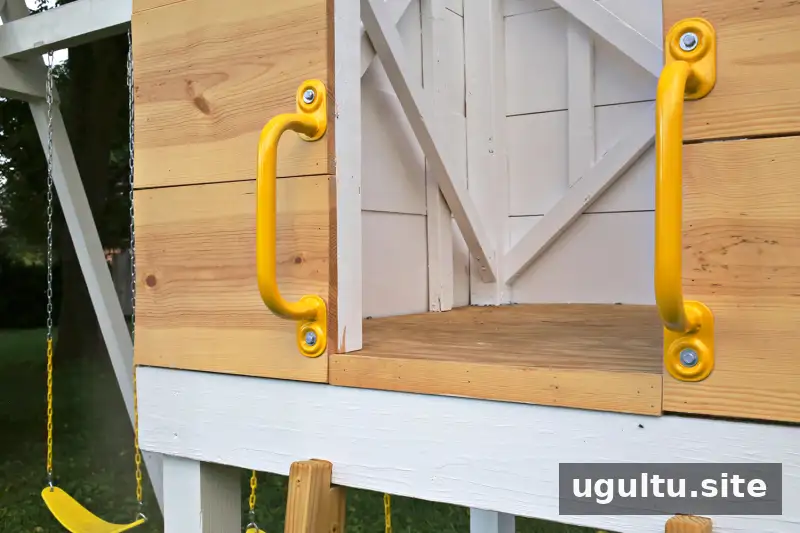

Apply two or three coats of clear wood protector to the surfaces that will remain natural, following the product directions and allowing each coat to dry as specified. Mask the natural wood before painting the trim, posts, and interior walls with exterior paint. Fit the handles using their supplied bolts and washers.

Before use, inspect the frame, fasteners, swing attachments, slide, ladder, roof, and finished edges. Confirm that the concrete has fully set and that the swings and slide have the required clear space. Continue routine checks for loose connections, splintering, corrosion, and weather-related wear.

Design: Elsie; construction: Collin. With careful planning, appropriate safety checks, and regular maintenance, this mid-century play set can provide an inviting outdoor play area with a distinctive, home-matched look.
